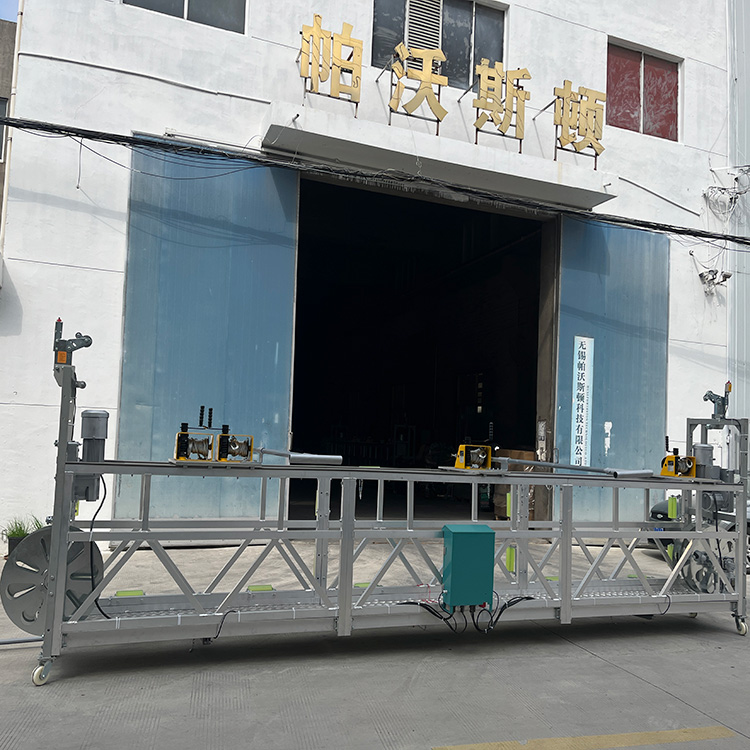

ZLP Series suspended platform detail
ZLP Series suspended platform safe extension technology
|
|
|
 |
L beam hanger extension and quick-release pin-type modular all iron and aluminum platform system. |
|
|
|
|

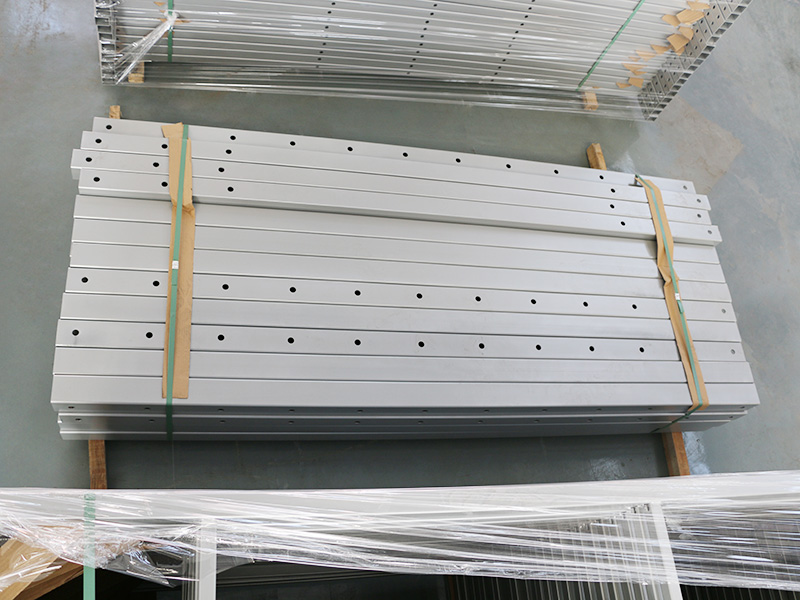

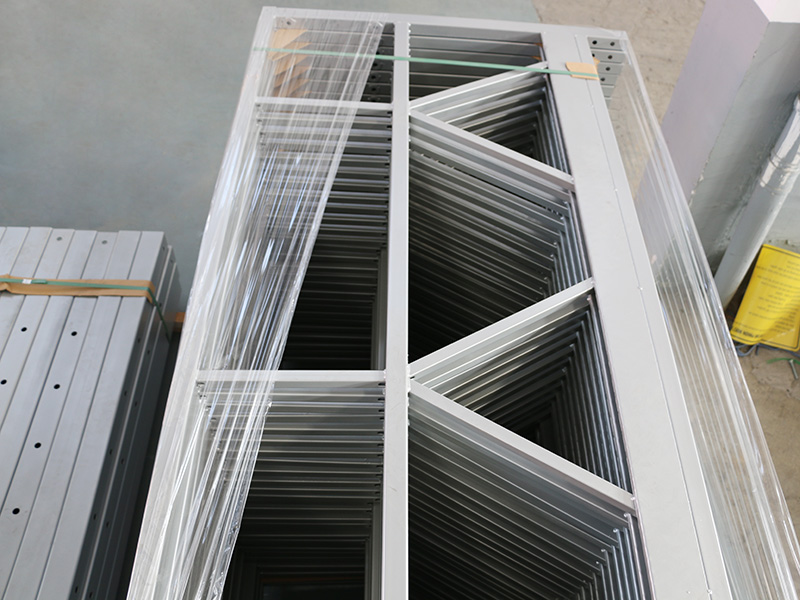

With all iron and aluminum standard sections of 1,1.5, 2, 2.5, and 3 meters, it is suitable for various sizes. |
 |
|
|
|
 |
The ZLP series suspended platform has core technologies such as POWERSTON self-developed safety protection system, independent control system, and lifting drive system. It has applied for patent protection and obtained CE certification. |
|
|
|
|
Camera or helmet Real-time monitoring of safety hazards on the platform to protect personnel safety. |
 |
|
|
|
 |
The extendable telescopic component can adapt to uneven wall surfaces and realize automatic extension operation. |
ZLP Series conventional suspended platform technical parameters
|
Model No. |
ZLP630 |
ZLP800 |
ZLP1000 |
|
Rated load (kg) |
630 |
800 |
1000 |
|
Lifting speed (m/min) |
9～11 |
8～10 |
8-10 |
|
Motor power (kw) |
2×1.5 50HZ/60HZ |
2×1.8 50HZ/60HZ |
2×2.2 |
|
50HZ/60HZ |
|
Brake torque (Km) |
16 |
16 |
16 |
|
Steel rope angle adjusting range (°) |
3°-8° |
3°-8° |
3°-8° |
|
Distance between two steel rope (mm) |
≤100 |
≤100 |
≤100 |
|
Rated stretch of front beam (mm) |
1300-1700 |
1300-1700 |
1300-1700 |
|
Suspended platform |
Material |
Aluminum alloy/steel |
Aluminum alloy/steel |
Aluminum alloy/steel |
|
Platform sections |
2/3 |
3 |
3 |
|
L×W×H (mm) |
(2000×3)×690×1300 |
(2500×3)×690×1300 |
(2500×3)×690×1300 |
|

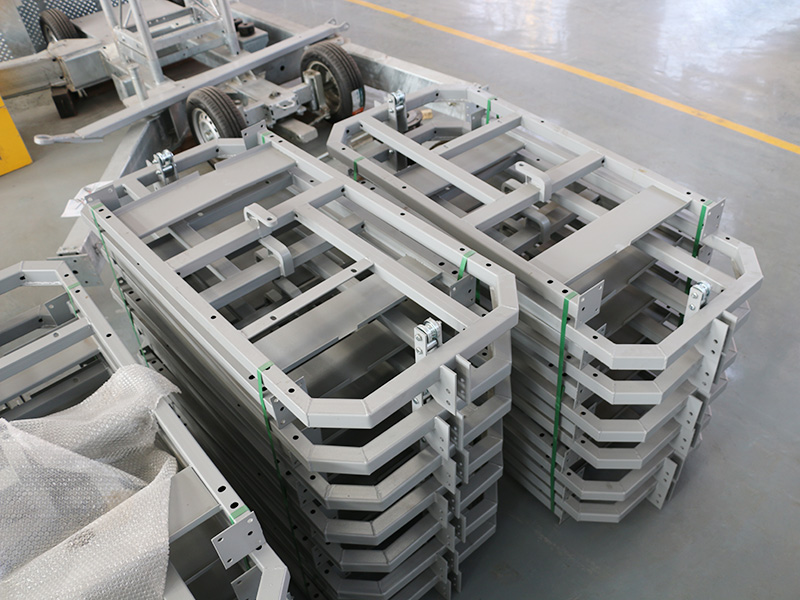

Suspension mechanism (kg) |
2×150 Kg |
2×150 Kg |
2×155 Kg |
|

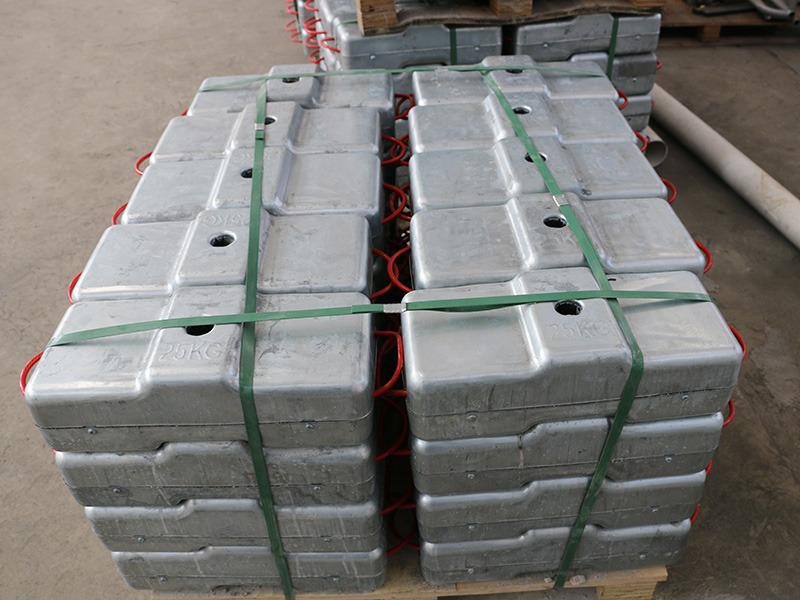

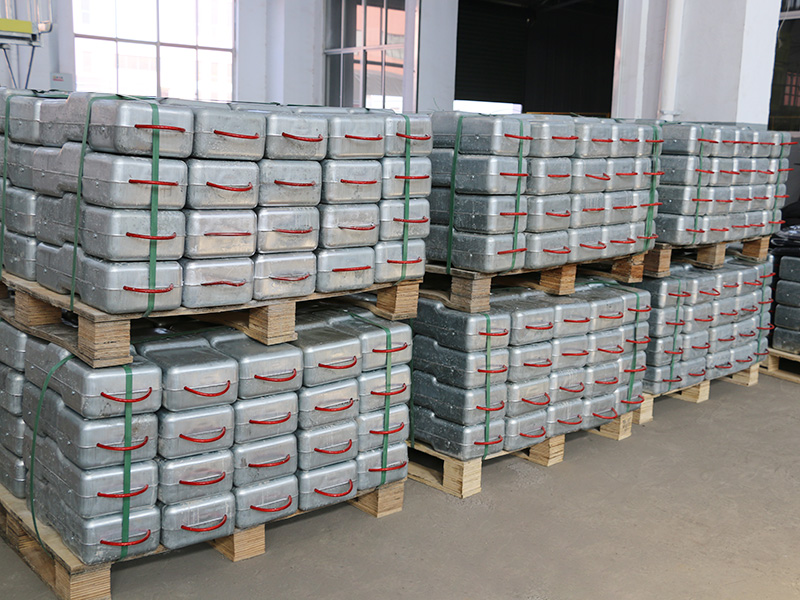

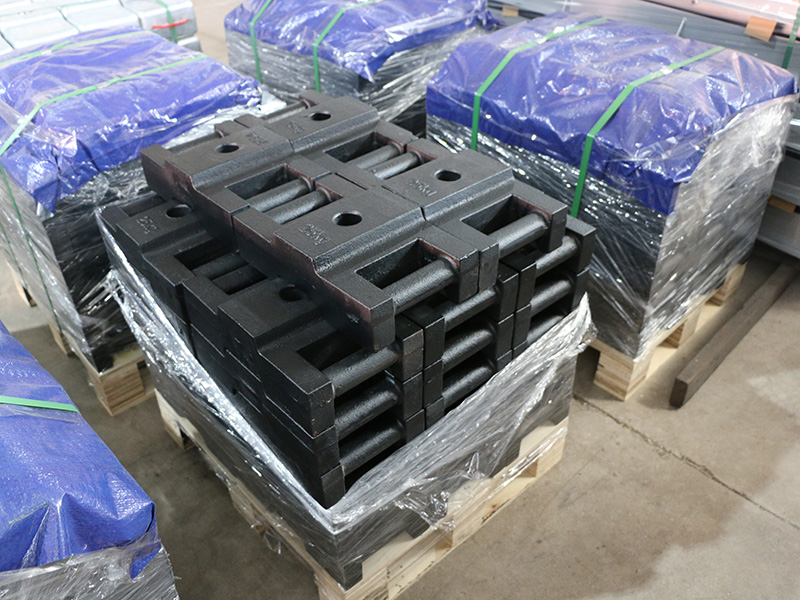

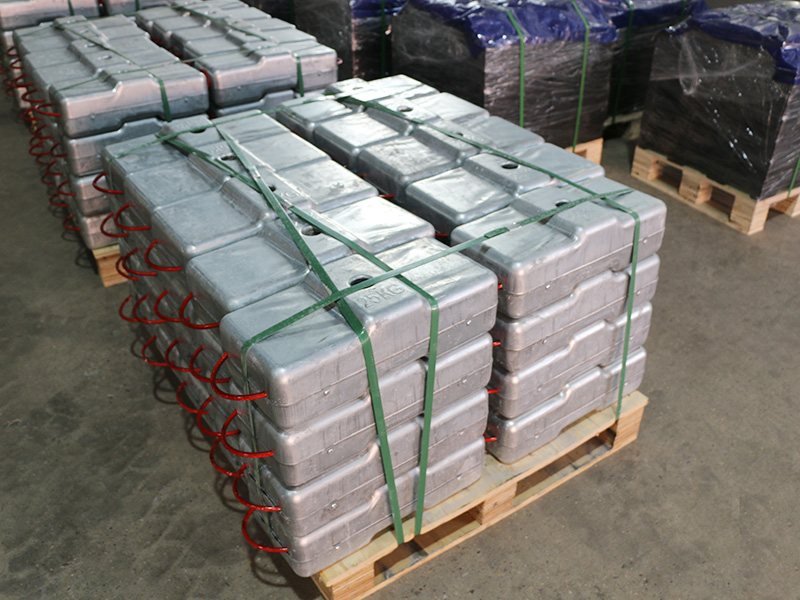

Counterweight (kg) optional |
25×36pcs |
25×40pcs |
25×50pcs |
|
Diameter of steel rope (mm) |
8.3 |
8.6 |
8.6/9.1 |
|
Max Lifting height (m) |
300 |
300 |
300 |
|
Motor rotation speed (r/min) |
1420 |
1420 |
1420 |
|
Voltage(V)3PHASES/Single phase |
220V/380V/415V |
220V/380V/415V |
220V/380V/415V |
Modular platform safe extension technology
|
|
|
|
|
|
|
|
|
|
 |
|
Ring Suspended Platform
Max. diameter up to 30m |
|
|
 |
|
Double-layer Suspended Platform
The max. platform length can reach 7.5m |
|
|
|
|
|
|
|
|
|
|
|
 |
|
Heavy load special shaped Suspended Platform
Max. capacity 2000kg |
|
|
 |
|
Corner Suspended Platform
Can achieve any angle
wall coordination |
|
|
|
|
|
|
|
|
|
|
|
 |
|
Boiler Suspended Platform
Narrow space can be combined freely |
|
|
|
|
|
|
Suspended platforms are designed with multiple features that enhance safety, versatility, and operational efficiency:
-
High Load Capacity: Models range from 250 kg to 1000 kg, suitable for carrying multiple workers and heavy equipment.
-
Adjustable Platform Size: Platforms can be customized in length, width, and height to fit specific project requirements.
-
Powerful Hoisting System: Equipped with electric motors (typically 3-phase 380V) that provide lifting speeds between 8 to 10 meters per minute.
-
Advanced Safety Mechanisms: Safety locks, overload sensors, emergency stop functions, and anti-tilting devices protect workers during operation.
-
Durable Construction: Made from corrosion-resistant materials to withstand harsh weather conditions and ensure longevity.
-
Easy Operation: Simple controls enable precise positioning and smooth ascent/descent for efficient work.
